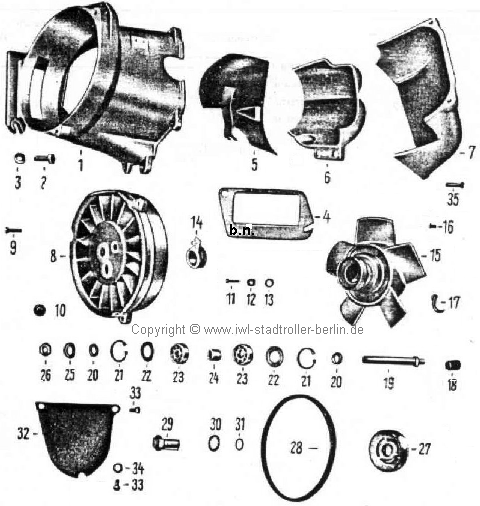

Bild Nr. |
Ersatzteil-Nr. |
Benennung |
Anzahl |
Bemerkung |
1 |
11-848.01-0 |
Gebläsegehäuse |
1 |
. |
2 |
. |
Sechskantschraube M 8x25 |
2 |
TGL 0-931-5 D |
3 |
. |
Federscheibe B 8 |
2 |
DIN 137 |
4 |
11-848.30-0 |
Spannstück 5 |
n. Bed. |
. |
5 |
11-848.03-0 |
Inneres Abdeckblech |
1 |
. |
6 |
11-848.29-0 |
Abdeckkappe unten |
1 |
. |
7 |
11-848.28-0 |
Abdeckkappe oben |
1 |
. |
8 |
11-848.02-0 |
Luftleitring |
1 |
. |
9 |
. |
Zylinderschraube für Luftleitring M 6x20 |
3 |
TGL 0-84-5 S |
10 |
02-848.71-0 |
Verschlußpfropfen für Schauloch |
1 |
. |
11 |
.. |
Zylinderschraube M 4x18 |
1 |
DIN 84 - 5 S (TGL 0-84-5 S) |
12 |
1-00.88-05 |
Unterlegscheibe |
1 |
. |
13 |
11-848.24-0 |
Isolierscheibe |
1 |
. |
14 |
11-848.20-0 |
Kontaktring mit Kontaktblech vollständig |
1 |
. |
15 |
11-848.40-0 |
Gebläselaufrad vollst. |
1 |
. |
16 |
. |
Halbrundniet 3x5 |
4 |
DIN 660 (TGL 0-660) |
17 |
11-848.25-0 |
Kontaktfeder mit Fliehgewicht |
1 |
. |
. |
. |
Halbrundniet 3x6 für Fliegewicht |
1 |
DIN 660 (TGL 0-660) |
18 |
11-848.45-0 |
Gummihülse |
1 |
. |
19 |
11-848.44-0 |
Achse |
1 |
. |
20 |
01-848.68-0 |
Distanzring |
2 |
. |
21 |
. |
Sicherungsring 32x1,2 |
2 |
DIN 472 |
. |
. |
Sicherungsring 12x1 |
1 |
DIN 471 |
. |
1-00.41-14 |
Ausgleichscheibe |
n. Bed. |
. |
. |
1-00.41-04 |
Ausgleichscheibe |
n. Bed. |
. |
22 |
18-00.63-05 |
Spritzscheibe |
2 |
. |
23 |
. |
Rillenlager 6201 12x32x10 |
2 |
DIN 625 |
24 |
11-848.18-1 |
Distanzbüchse |
1 |
. |
25 |
1-00.33-04 |
Unterlegscheibe |
n. Bed. |
. |
26 |
. |
Flache Sechskantmutter M 12x1,5 |
1 |
DIN 936 |
27 |
11-848.37-0 |
Antriebsscheibe |
1 |
. |
28 |
. |
Keilriemen 8x475 |
1 |
TGL 6554 |
29 |
01-848.30-1 |
Hülsenmutter |
1 |
. |
30 |
. |
Zahnscheibe J 16,5 |
1 |
DIN 6797 |
31 |
7-00.04-05 |
Dichtring |
1 |
. |
32 |
01-848.84-0 |
Abdeckblech |
1 |
. |
33 |
. |
Zylinderschraube M 6x12 |
3 |
DIN 84-5 S (TGL 0-84-5 S) |
34 |
. |
Federscheibe B 6 |
1 |
DIN 137 |
35 |
. |
Zylinderschraube M 6x20 |
4 |
DIN 84-5 S (TGL 0-84-5 S) |
. |
n. Bed. |
Kugelwulstschmierkopf AM 6
bei der Achse11-848.17-0 alte Ausführung |
|
1 |
DIN 3403 |
